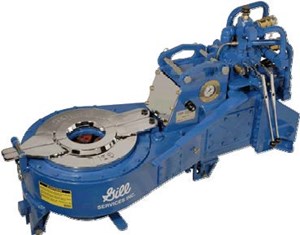

Over View


Range: 1 5/16" to 7"
Max Standard Torque: 6,000 Ft-Lbs at 2000 psi
Max Hi-Torque: 8,000 Ft-Lbs at 2000 psi

  • Size Range: 1-5/16" – 7"
  • Speed – Allows joint make-up in as little as 5 seconds and break-out
    in 7 seconds
  • Split Guide Ring – Provides easier and safer access to jaws and final
    drive gear components
  • Pressurized Oil Bath – Insures uniform lubrication of moving parts
  • Available with air or hydraulic assist for Back-Up Tool
  • Adjustable Clutch – Extends the life of transmission
  • “Power Shift” Transmission - Enables operator to change
    gears during tong operation
  • Improved Drive Alignment - Minimizes
    wasted power and provides quieter
    running with less friction

Contact our expert sales staff for pricing, availability and product specifications for the Gill Power Tong right for your application at the link provided on this page.
